Premium Techanical Support Trading Est. is a certified manufacturing company that manufactures and supplies steel-grade products. We supply all types of flanges, pipes, weld fittings, fasteners, tubes, bars, etc. We always make sure that all the products are well tested and certified.

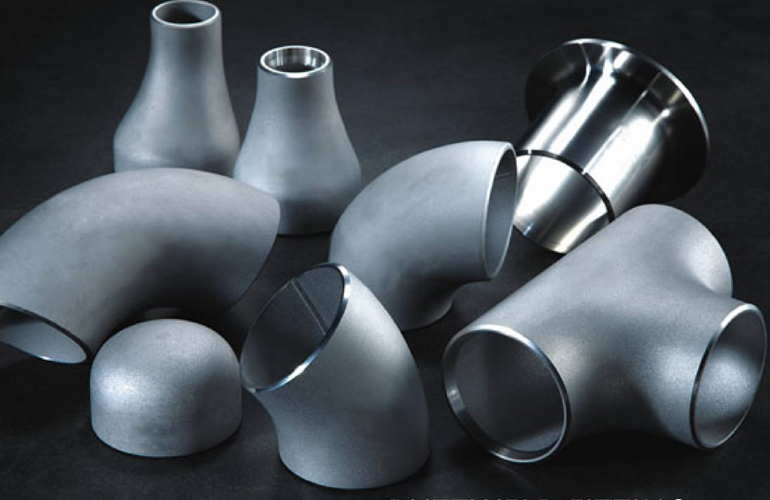

These ASTM A403 WP 304 Stainless Steel Buttweld Pipe Fittings have excellent weldability; hence it is a versatile alloy for manufacturing. ASTM A403 WP 304 Stainless Steel Buttweld Pipe Fittings are made for high-temperature applications. These fittings are made of chromium, molybdenum, and nickel, which is most commonly found in the chemical composition of these alloys. The alloy also includes vanadium, platinum, and tungsten, etc., for extra moldability and toughness. The carbon content is relatively lower than other alloys. It is very favorable for its usefulness in the printing and textile industries.
WP 304 ASTM A403 Stainless Steel Buttweld Pipe Fittings have good weldability, strength, durability, low maintenance, etc. These buttweld fitting are made for complex application with good heat resistance. The melting point of this alloy is 1400°C which makes it applicable in moderate/high heat applications.
ASTM A403 WP 304 Stainless Steel Buttweld Pipe Fittings sizes start from ½ inches to 48 inches.
The tensile strength of the alloy is 515 Mpa, whereas the yield strength is 205 Mpa. It also has good thermal conductivity and creep strength. ASTM A403 WP 304 Stainless Steel Buttweld Pipe Fittings have magnetic and non-magnetic properties; it is also highly resistant to general corrosion, crevice corrosion, oxidation, erosion, and stress corrosion properties.
Application: Power Generation, Pulp and Paper Industry, Condensers, Gas Processing, Sea Water Equipment, Specialty Chemicals, Heat Exchangers, Chemical Equipment, Pharmaceuticals, Off-Shore Oil Drilling, Companies Petrochemicals, Pharmaceutical Equipment
Stainless Steel 304 Buttweld Fittings Specifications
| Standards | : |
ASTM, ASME |
| Designation | : |
A 403, SA 403 |
| Grade | : | Stainless steel 304 Buttweld Pipe Fittings. |
| Type | : |
Seamless, Welded |
| Thickness | : |
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Dimension Standard | : |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Seamless 304 Butt weld Fittings Size | : |
1/2" to 24" |
| Welded 304 Butt weld Fittings Size | : |
1/2" to 24", |
|
Two Joint / Two Halve 304 Butt weld Fittings Size |
: |
6" to 48" |
Stainless Steel 304 Buttweld Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 |
Stainless Steel 304 Buttweld Fittings Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 304 Buttweld Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
Available Types of Stainless Steel 304 Buttweld Fittings
| Stainless Steel 304 Buttweld Fittings | Steel 304 Buttweld Fittings |
| Stainless Steel 304 Pipe Fittings | SS 304 Reducers |
| Stainless Steel 304 Buttweld Pipe Fittings | WP 304 Stainless Steel Pipe Bend |
| SS 304 Butt weld Fittings | Stainless Steel ASTM A403M WP304 Cross |
| Stainless Steel 304 Nipple Distributor | ASME B16.9 SS 304 Buttweld 90° Elbow |
| Stainless Steel 304 Pipe Elbow Manufacturer | Steel 304 Butt weld Elbows |
| 304 SS Concentric Reducers | Stainless Steel DIN 1.4301 Equal Tee |
| ASTM A403 Stainless Steel WP304 Eccentric Reducer | 304 Stainless Steel Short Radius Elbow |
| Stainless Steel UNS S30400 Seamless Pipe Fittings | ANSI B16.9 SS WP304 Butt weld Fittings Supplier |
| ASME SA403 SS 304 Buttweld Tee Stockist | WP304 Stainless Steel Welded Pipe Fittings |
| Wrought Austenitic Stainless Steel 304 Piping Fittings | 304 Stainless Steel Long Radius Elbow Stockiest |
| A403 SS WP304 End Pipe Cap Exporter | ASTM A403M WP304 Stainless Steel Stub Ends Dealer |
