Premium Techanical Support Trading Est is a certified manufacturing company that manufactures and supplies steel-grade products. We supply all types of flanges, pipes, weld fittings, fasteners, tubes, bars, Etc. We always make sure that all the products are well tested and certified.

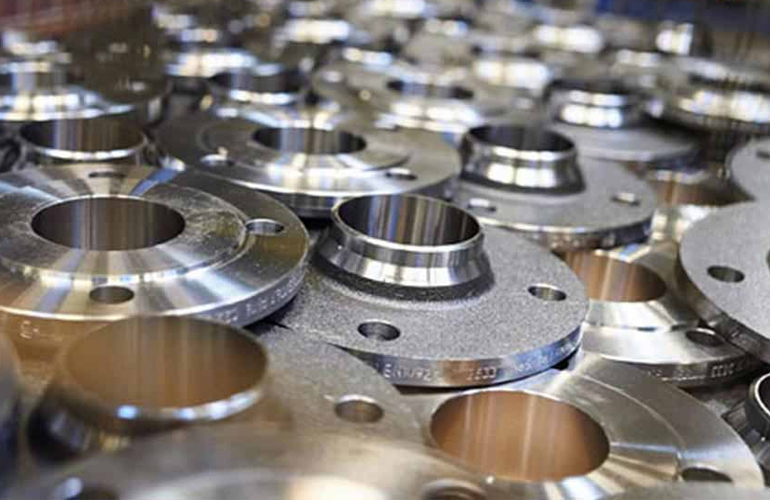

Stainless steel 304 flanges are enriched with amazing ductile, welding, and annealing properties. These flanges are generally made of 8% nickel, 18% chromium, and austenitic steel. Stainless steel 304 flanges are corrosion and oxidation resistant, which makes them ideal for big industrial applications. 304 flanges are also resistant to crevice corrosion, heat, and pitting as it has low carbon content. This grade can tolerate heat up to 870°C, which allows it to work in heat application units.
Stainless steel 304 flanges are reinforced with amazing annealing properties. The right annealing temperature is from 1010°C to 1120°C, SS304 flanges are so low on carbon content that it does not require post-annealing treatment. 304 is often used in the fabrication of pipe fittings as it has a high carbon grade alloy. This alloy has a high yield and tensile strength. The tensile strength of stainless steel 304 flanges is 75000 Psi, and the yield strength is 30000 Psi.
Application: Stainless steel 304 flanges are used in applications in Power Generation, Pulp and Paper Industry, Condensers, Gas Processing, Sea Water Equipment, Specialty Chemicals, Heat Exchangers, Chemical Equipment, Pharmaceuticals, Off-Shore Oil Drilling, Companies Petrochemicals, Pharmaceutical Equipment.
Stainless Steel 304 Flanges Specifications
| Standards | : | ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Designation | : | A 182 / A 240, SA 182 / SA 240 |
| Grade | : | Stainless steel 304 Flanges |
| Class | : | PN6, PN10, PN16, PN25, PN40, PN64. 150#, 300#, 600#, 900#, 1500#, 2500#. |
| Dimension | : | B16.5, BS4504, EN-1092, |
Stainless Steel 304 Flanges Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | EN | BS | GOST | JIS | AFNOR |
| SS 304 | S30400 | 1.4301 | X5CrNi18-10 | 304S31 | 08Х18Н10 | SUS 304 | Z7CN18‐09 |
Stainless Steel 304 Flanges Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 |
Stainless Steel 304 Flanges Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 304 Flanges Available Types
| Stainless Steel 304 Flanges | Steel 304 Flanges |
| Stainless Steel 304 Pipe Flanges | SS 304 Flanges |
| Stainless Steel 304 Welding Neck Flange | F304 Stainless Steel Forged Flanges |
| SS 304 Slip on Flange | Stainless Steel ASTM A182M 304 Plate Flanges |
| Stainless Steel 304 Blind Flange Distributor | ASME B16.5 SS 304 High Hub Blind Flange |
| Stainless Steel 304 Socket Weld Flanges Manufacturer | Steel 304 Lap Joint Flanges |
| 304 Stainless Steel Threaded Flanges | Stainless Steel DIN 1.4301 RTJ Flange |
| Stainless Steel F304 ASME Flanges | 304 Stainless Steel ANSI Flanges |
| ASTM A182 Stainless Steel Reducing Flanges | 304 Stainless Steel Long Weld Neck Flanges |
| Stainless Steel UNS S30400 Orifice Flange | ANSI B16.5 SS 304 WNRF Flange Supplier |
| ASME SA182 SS 304 Spectacle Blind Flanges Stockist | 304 Stainless Steel Screwed Flanges |
| Wrought Austenitic Stainless Steel 304 SORF Flanges | 304 Stainless Steel BLRF Flanges Stockiest |
| SS 304 Ring Type Joint Flanges Exporter | ASTM A182M 304 SS DIN Flanges Dealer |
