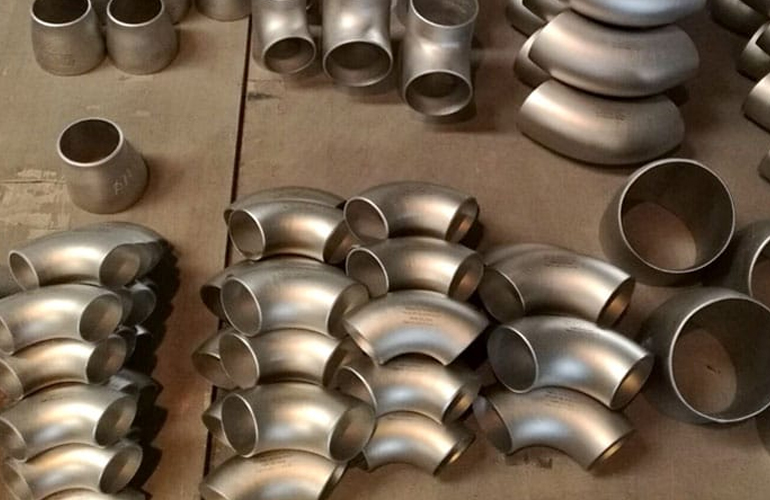

Stainless steel 316 buttweld fittings are made of chromium-nickel alloy. It also has a moderate amount of molybdenum which makes these buttweld fittings strong and durable. These fittings are made for long time purposes. These fittings have good hardness power which makes it applicable in industries. These fittings are made in different sizes, shapes, and thicknesses. 316 Buttweld Fitting is low carbon stainless steel grade with a moderate amount of austenitic base. Premium Techanical Support Trading Est. is a certified manufacturing company that manufactures and supply steel-grade products. We make high-quality ductile 316 buttweld fittings. We always make sure that all the products are well tested and certified.
316 buttweld fittings are in high demand because they are strong and used for multiple purposes. These buttweld fittings are resistant to many chemical processes. It provides resistance from corrosion, oxidation, erosion, crevice corrosion, and stress cracking. Premium Techanical Support Trading Est. are famous for manufacturing effective buttweld fittings which provide high mechanism and strength. These fittings are enriched with non-oxidation properties which protects them from rusting. It has all the properties which protect this alloy from the attack of sulphur and chloride.
The tensile strength of these fittings is 75000 Psi and the yield strength is 30000 Psi . the melting point of this alloy is quite higher than other alloys i.e. 2550°F. These buttweld fittings are commonly being used in fabrication. These fittings support cool as well as hot workings.
Applications: Power Generation, Pulp and Paper Industry, Condensers, Gas Processing, Sea Water Equipment, Specialty Chemicals, Heat Exchangers, Chemical Equipment, Pharmaceuticals, Off-Shore Oil Drilling, Companies Petrochemicals, Pharmaceutical Equipment
Stainless Steel 316 Buttweld Fittings Specifications
| Standards | : | ASTM, ASME |
| Designation | : | A 403, SA 403 |
| Grade | : | Stainless steel 316 Buttweld Pipe Fittings. |
| Type | : | Seamless, Welded |
| Thickness | : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Dimension Standard | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Seamless 316 Butt weld Fittings Size | : | 1/2" to 24" |
| Welded 316 Butt weld Fittings Size | : | 1/2" to 24", |
Two Joint / Two Halve 316 Butt weld Fittings Size |
: | 6" to 48" |
Stainless Steel 316 Buttweld Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
Stainless Steel 316 Buttweld Fittings Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 316 Buttweld Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Available Types of Stainless Steel 316 Buttweld Fittings
| Stainless Steel 316 Buttweld Fittings | Steel 316 Buttweld Fittings |
| Stainless Steel 316 Pipe Fittings | SS 316 Reducers |
| Stainless Steel 316 Buttweld Pipe Fittings | WP 316 Stainless Steel Pipe Bend |
| SS 316 Butt weld Fittings | Stainless Steel ASTM A403M WP316 Cross |
| Stainless Steel 316 Nipple Distributor | ASME B16.9 SS 316 Buttweld 90° Elbow |
| Stainless Steel 316 Pipe Elbow Manufacturer | Steel 316 Butt weld Elbows |
| 316 SS Concentric Reducers | Stainless Steel DIN 1.4401 / 1.4436 Equal Tee |
| ASTM A403 Stainless Steel WP316 Eccentric Reducer | 316 Stainless Steel Short Radius Elbow |
| Stainless Steel UNS S31600 Seamless Pipe Fittings | ANSI B16.9 SS WP316 Butt weld Fittings Supplier |
| ASME SA403 SS 316 Buttweld Tee Stockist | WP316 Stainless Steel Welded Pipe Fittings |
| Wrought Austenitic Stainless 316 Piping Fittings | 316 Stainless Steel Long Radius Elbow Stockiest |
| A403 SS WP316 End Pipe Cap Exporter | ASTM A403M WP316 SS Stub Ends Dealer |
