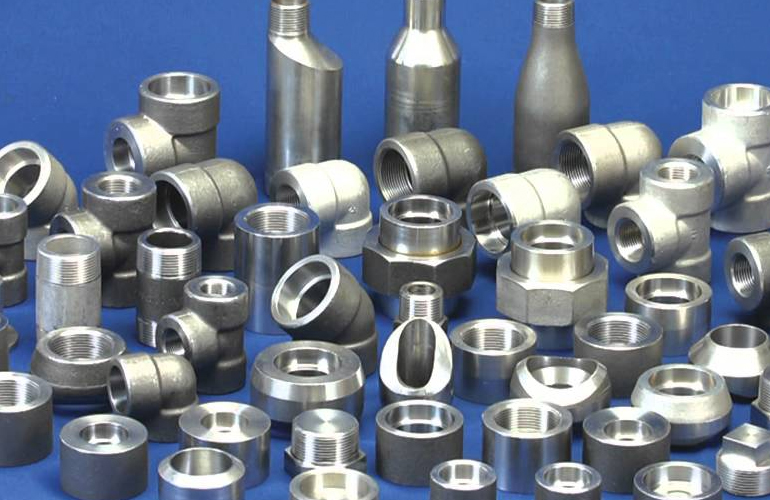

Premium Techanical Support Trading Est are Manufacturer, Exporter and Supplier of Stainless Steel Forged Fittings. Premium Techanical Support Trading Est are Manufacturing Stainless Steel 316 Forged Fittings of high quality raw materials. All sizes from small diameter to big can be made available by us. Stainless Steel 316 Forged fittings are widely used in residential and industrial sectors.
Stainless Steel 316 Forged Fittings Specifications
| Standards | : | ASTM, ASME |
| Designation | : | A 182, SA 182 |
| Grade | : | Stainless steel 316 Forged Fittings |
| Dimension | : | ANSI B 16.11 |
| Class | : | 2000#, 3000#, 6000#, 9000# |
| Size | : | 1/4" to 4" |
Stainless Steel 316 Forged Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | BS | JIS | EN | GOST | AFNOR |
| SS 316 | 1.4401 / 1.4436 | S31600 | 316S31 / 316S33 | SUS 316 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | - | Z7CND17‐11‐02 |
Stainless Steel 316 Forged Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
Stainless Steel 316 Forged Fittings Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 316 Forged Fittings Available Types
| Stainless Steel 316 Forged Fittings | Steel 316 Forged Fittings |
| Stainless Steel 316 Threaded Fittings | SS 316 Forged Coupling |
| Stainless Steel 316 Forged Pipe Fittings | 316 Stainless Steel End Pipe Cap |
| SS 316 Forged Fittings | Stainless Steel ASTM A182 316 Cross |
| Stainless Steel 316 Pipe Nipple Distributor | ASME B16.11 SS 316 Forged 90° Elbow |
| SS 316 Threaded Pipe Elbow Manufacturer | SS 316 Socket weld Elbows |
| SUS 316 SS Full Coupling | Stainless Steel DIN 1.4436 Tee |
| ASTM A182 Stainless Steel 316 Bushing | 316 Stainless Steel High Pressure Forged Fittings |
| Stainless Steel UNS S31600 Socket weld Fittings | ANSI B16.11 SS 316 45° Elbow Supplier |
| ASME SA182 SS 316 Forged Union Stockist | 316 Stainless Steel Street Elbow |
| Wrought Austenitic Stainless Steel 316 Forged Plug | 316 Stainless Steel Screwed Fittings Stockiest |
| A182 SS 316 End Pipe Cap Exporter | ASTM A182 316 Stainless Steel Threaded Tee Dealer |
