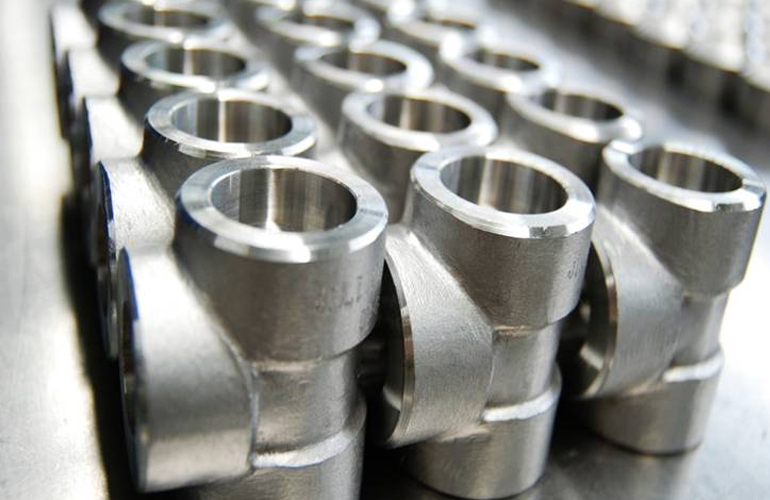

Premium Techanical Support Trading Est are Manufacturer, Exporter and Supplier of Stainless Steel Forged Fittings. Premium Techanical Support Trading Est are Manufacturing Stainless Steel 347 Forged Fittings of high quality raw materials. All sizes from small diameter to big can be made available by us. Stainless Steel 347 Forged fittings are widely used in residential and industrial sectors.
Stainless Steel 347 Forged Fittings Specifications
| Standards | : | ASTM, ASME |
| Designation | : | A 182, SA 182 |
| Grade | : | Stainless steel 347 Forged Fittings |
| Dimension | : | ANSI B 16.11 |
| Class | : | 2000#, 3000#, 6000#, 9000# |
| Size | : | 1/4" to 4" |
Stainless Steel 347 Forged Fittings Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| SS 347 | S34700 | 1.4550 |
Stainless Steel 347 Forged Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 20.00 | 10xC – 1.10 | 9.00 - 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
Stainless Steel 347 Forged Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 347 Forged Fittings Available Types
| Stainless Steel 347 Forged Fittings | Steel 347 Forged Fittings |
| Stainless Steel 347 Threaded Fittings | SS 347 Forged Coupling |
| Stainless Steel 347 Forged Pipe Fittings | 347 Stainless Steel End Pipe Cap |
| SS 347 Forged Fittings | Stainless Steel ASTM A182 347 Cross |
| Stainless Steel 347 Pipe Nipple Distributor | ASME B16.11 SS 347 Forged 90° Elbow |
| SS 347 Threaded Pipe Elbow Manufacturer | SS 347 Socket weld Elbows |
| SUS 347 SS Full Coupling | Stainless Steel DIN 1.4550 Tee |
| ASTM A182 Stainless Steel 347 Bushing | 347 Stainless Steel High Pressure Forged Fittings |
| Stainless Steel UNS S34700 Socket weld Fittings | ANSI B16.11 SS 347 45° Elbow Supplier |
| ASME SA182 SS 347 Forged Union Stockist | 347 Stainless Steel Street Elbow |
| Wrought Austenitic Stainless Steel 347 Forged Plug | 347 Stainless Steel Screwed Fittings Stockiest |
| A182 SS 347 End Pipe Cap Exporter | ASTM A182 347 Stainless Steel Threaded Tee Dealer |
