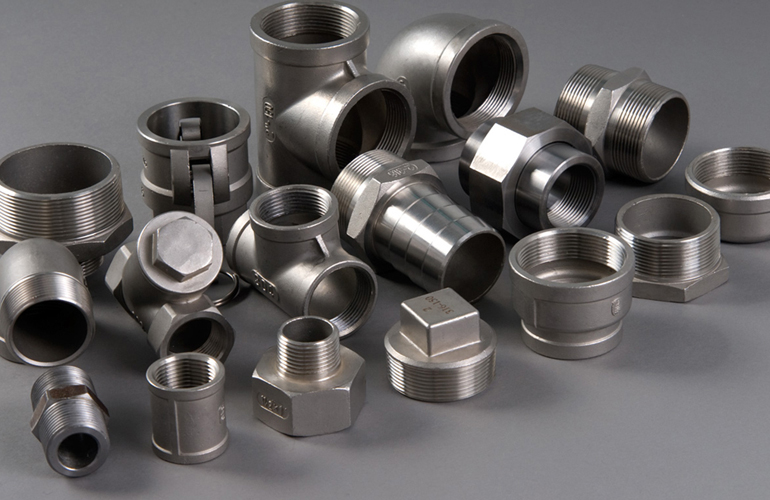

Premium Techanical Support Trading Est are Manufacturer, Exporter and Supplier of Stainless Steel Forged Fittings. Premium Techanical Support Trading Est are Manufacturing Stainless Steel 316L Forged Fittings of high quality raw materials. All sizes from small diameter to big can be made available by us. Stainless Steel 316L Forged fittings are widely used in residential and industrial sectors.
Stainless Steel 316L Forged Fittings Specifications
| Standards | : | ASTM, ASME |
| Designation | : | A 182, SA 182 |
| Grade | : | Stainless steel 316L Forged Fittings |
| Dimension | : | ANSI B 16.11 |
| Class | : | 2000#, 3000#, 6000#, 9000# |
| Size | : | 1/4" to 4" |
Stainless Steel 316L Forged Fittings Equivalent Grades
| STANDARD | UNS | EN | WERKSTOFF NR. | BS | JIS | GOST | AFNOR |
| SS 316L | S31603 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | 1.4404 / 1.4435 | 316S11 / 316S13 | SUS 316L | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
Stainless Steel 316L Forged Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
Stainless Steel 316L Forged Fittings Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 316L Forged Fittings Available Types
| Stainless Steel 316L Forged Fittings | Steel 316L Forged Fittings |
| Stainless Steel 316L Threaded Fittings | SS 316L Forged Coupling |
| Stainless Steel 316L Forged Pipe Fittings | 316L Stainless Steel End Pipe Cap |
| SS 316L Forged Fittings | Stainless Steel ASTM A182 316L Cross |
| Stainless Steel 316L Pipe Nipple Distributor | ASME B16.11 SS 316L Forged 90° Elbow |
| SS 316L Threaded Pipe Elbow Manufacturer | SS 316L Socket weld Elbows |
| SUS 316L SS Full Coupling | Stainless Steel DIN 1.4435 Tee |
| ASTM A182 Stainless Steel 316L Bushing | 316L Stainless Steel High Pressure Forged Fittings |
| Stainless Steel UNS S31603 Socket weld Fittings | ANSI B16.11 SS 316L 45° Elbow Supplier |
| ASME SA182 SS 316L Forged Union Stockist | 316L Stainless Steel Street Elbow |
| Wrought Austenitic Stainless Steel 316L Forged Plug | 316L Stainless Steel Screwed Fittings Stockiest |
| A182 SS 316L End Pipe Cap Exporter | ASTM A182 316L Stainless Steel Threaded Tee Dealer |
