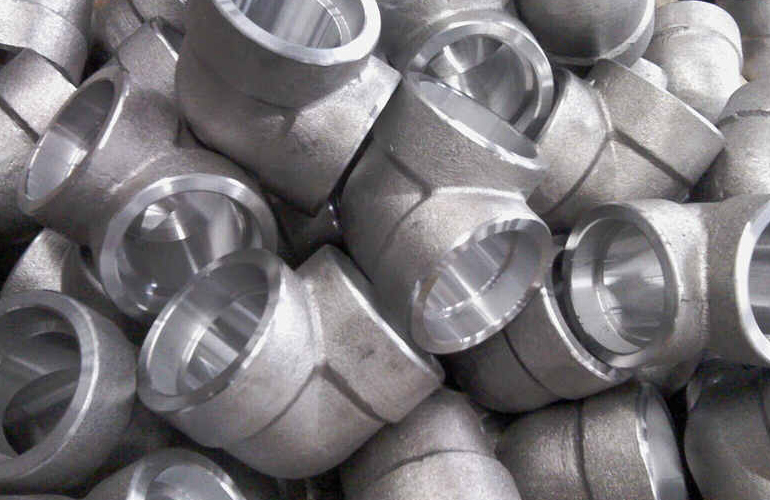

Premium Techanical Support Trading Est are Manufacturer, Exporter and Supplier of Stainless Steel Forged Fittings. Premium Techanical Support Trading Est are Manufacturing Stainless Steel 317L Forged Fittings of high quality raw materials. All sizes from small diameter to big can be made available by us. Stainless Steel 317L Forged fittings are widely used in residential and industrial sectors.
Stainless Steel 317L Forged Fittings Specifications
| Standards | : | ASTM, ASME |
| Designation | : | A 182, SA 182 |
| Grade | : | Stainless steel 317L Forged Fittings |
| Dimension | : | ANSI B 16.11 |
| Class | : | 2000#, 3000#, 6000#, 9000# |
| Size | : | 1/4" to 4" |
Stainless Steel 317L Forged Fittings Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| SS 317L | S31703 | 1.4438 |
Stainless Steel 317L Forged Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.89 min |
Stainless Steel 317L Forged Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 317L Forged Fittings Available Types
| Stainless Steel 317L Forged Fittings | Steel 317L Forged Fittings |
| Stainless Steel 317L Threaded Fittings | SS 317L Forged Coupling |
| Stainless Steel 317L Forged Pipe Fittings | 317L Stainless Steel End Pipe Cap |
| SS 317L Forged Fittings | Stainless Steel ASTM A182 317L Cross |
| Stainless Steel 317L Pipe Nipple Distributor | ASME B16.11 SS 317L Forged 90° Elbow |
| SS 317L Threaded Pipe Elbow Manufacturer | SS 317L Socket weld Elbows |
| SUS 317L SS Full Coupling | Stainless Steel DIN 1.4438 Tee |
| ASTM A182 Stainless Steel 317L Bushing | 317L Stainless Steel High Pressure Forged Fittings |
| Stainless Steel UNS S31703 Socket weld Fittings | ANSI B16.11 SS 317L 45° Elbow Supplier |
| ASME SA182 SS 317L Forged Union Stockist | 317L Stainless Steel Street Elbow |
| Wrought Austenitic Stainless Steel 317L Forged Plug | 317L Stainless Steel Screwed Fittings Stockiest |
| A182 SS 317L End Pipe Cap Exporter | ASTM A182 317L Stainless Steel Threaded Tee Dealer |
