Premium Techanical Support Trading Est is the manufacturer and supplier of steel-grade products. We produce the best quality stainless steel products. We are very certain about the quality of raw-material and the end product.

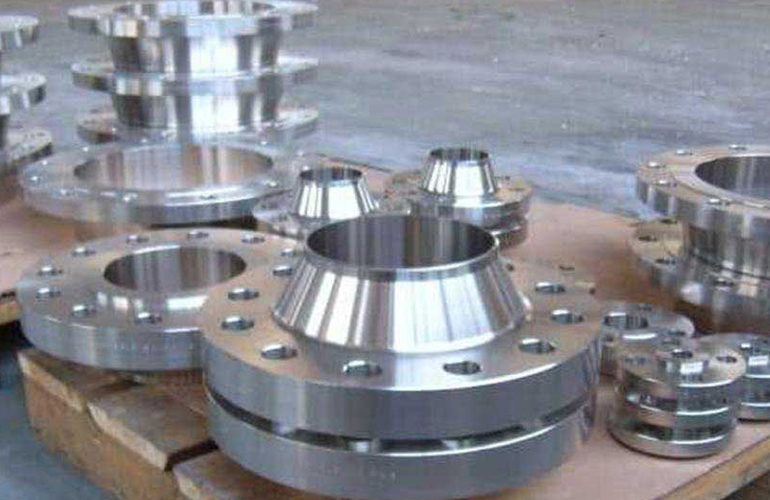

Flanges are mainly used to connect two pipes or vessels in industries. These flanges are made with a high amount of chromium and nickel. Stainless steel 310 is further divided into two variations: 310L and 310H, these two grades have different properties based on carbon compounds which are useful for various purposes. These flanges are commonly used in high-temperature applications.
These flanges are reinforced with properties of ductility and durability. Stainless steel 310 flanges provide high resistance from corrosion and oxidation. The melting point of the alloy is high, which allows its application in high-temperature zones.
The yield strength of stainless steel 310 flanges is 205Mpa, whereas the tensile strength is 515Mpa. The sizes of these flanges vary from ½ inches to 48 inches. The main purpose of SS310/310S flanges is to be rolled and forged to have threads to them to get attached to the pipe easily. Stainless steel 310 flanges also dispense exceptional resistance to sulfidation and thermal conductivity. Stainless steel 310 flanges are readily available in different sizes, shapes, and thicknesses for industrial and household purposes.
Application: Stainless steel 310 flanges are used for industrial and household purposes, but they are mainly applicable in petrochemical industries, sintering, steel plants, food and beverages industries, paper industries, cement industries, sugar industries, dairy industries, Etc.
Stainless Steel 310 Flanges Specifications
| Standards | : | ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Designation | : | A 182 / A 240, SA 182 / SA 240 |
| Grade | : | Stainless steel 310 Flanges |
| Class | : | PN6, PN10, PN16, PN25, PN40, PN64. 150#, 300#, 600#, 900#, 1500#, 2500#. |
| Dimension | : | B16.5, BS4504, EN-1092, |
Stainless Steel 310 Flanges Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| SS 310 | S31000 | 1.4841 |
Stainless Steel 310 Flanges Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 - 26.00 | 0.10 max | 19.00 - 21.00 | 54.7 min |
Stainless Steel 310 Flanges Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Stainless Steel 310 Flanges Available Types
| Stainless Steel 310 Flanges | Steel 310 Flanges |
| Stainless Steel 310 Pipe Flanges | SS 310 Flanges |
| Stainless Steel 310 Welding Neck Flange | F310 Stainless Steel Forged Flanges |
| SS 310 Slip on Flange | Stainless Steel ASTM A182M 310 Plate Flanges |
| Stainless Steel 310 Blind Flange Distributor | ASME B16.5 SS 310 High Hub Blind Flange |
| SS 310 Socket Weld Flanges Manufacturer | Steel 310 Lap Joint Flanges |
| 310 Stainless Steel Threaded Flanges | Stainless Steel DIN 1.4841 RTJ Flange |
| Stainless Steel F310 ASME Flanges | 310 Stainless Steel ANSI Flanges |
| ASTM A182 Stainless Steel Reducing Flanges | 310 Stainless Steel Long Weld Neck Flanges |
| Stainless Steel UNS S31000 Orifice Flange | ANSI B16.5 SS 310 WNRF Flange Supplier |
| ASME SA182 SS 310 Spectacle Blind Flanges Stockist | 310 Stainless Steel Screwed Flanges |
| Wrought Austenitic Stainless Steel 310 SORF Flanges | 310 Stainless Steel BLRF Flanges Stockiest |
| SS 310 Ring Type Joint Flanges Exporter | ASTM A182M 310 SS DIN Flanges Dealer |
