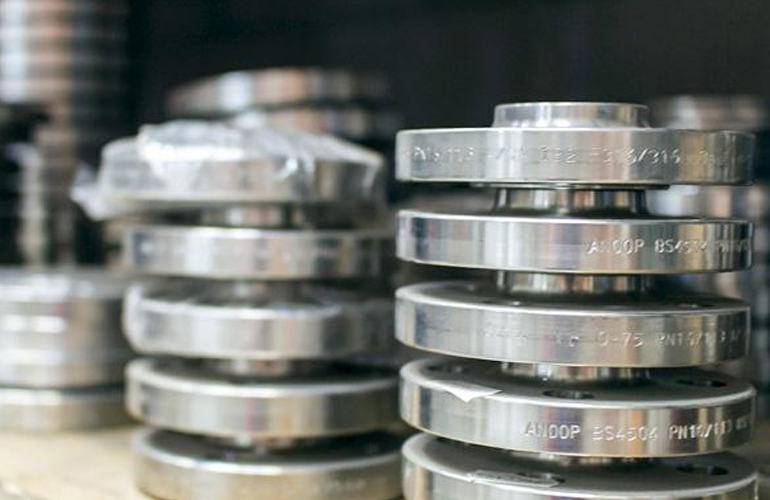

Premium Techanical Support Trading Est are Manufacturer, Exporter and Supplier of Stainless Steel Flanges. Premium Techanical Support Trading Est are Manufacturing Stainless Steel 316L Flanges of high quality raw materials. SS 316L flanges are precise in size, resistant to corrosion & non-reactive to chemicals including acids. Stainless Steel 316L Flanges are basically used for changing the route of liquid material.
Stainless Steel 316L Flanges Specifications
| Standards | : | ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Designation | : | A 182 / A 240, SA 182 / SA 240 |
| Grade | : | Stainless steel 316L Flanges |
| Class | : | PN6, PN10, PN16, PN25, PN40, PN64. 150#, 300#, 600#, 900#, 1500#, 2500#. |
| Dimension | : | B16.5, BS4504, EN-1092, |
Stainless Steel 316L Flanges Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | EN | BS | GOST | JIS | AFNOR |
| SS 316L | S31603 | 1.4404 / 1.4435 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | SUS 316L | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
Stainless Steel 316L Flanges Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
Stainless Steel 316L Flanges Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 316L Flanges Available Types
| Stainless Steel 316L Flanges | Steel 316L Flanges |
| Stainless Steel 316L Pipe Flanges | SS 316L Flanges |
| Stainless Steel 316L Welding Neck Flange | F316L Stainless Steel Forged Flanges |
| SS 316L Slip on Flange | Stainless Steel ASTM A182M 316L Plate Flanges |
| Stainless Steel 316L Blind Flange Distributor | ASME B16.5 SS 316L High Hub Blind Flange |
| SS 316L Socket Weld Flanges Manufacturer | Steel 316L Lap Joint Flanges |
| 316L Stainless Steel Threaded Flanges | Stainless Steel DIN 1.4401 / 1.4435 RTJ Flange |
| Stainless Steel F316L ASME Flanges | 316L Stainless Steel ANSI Flanges |
| ASTM A182 Stainless Steel Reducing Flanges | 316L Stainless Steel Long Weld Neck Flanges |
| Stainless Steel UNS S31603 Orifice Flange | ANSI B16.5 SS 316L WNRF Flange Supplier |
| ASME SA182 SS 316L Spectacle Blind Flanges Stockist | 316L Stainless Steel Screwed Flanges |
| Wrought Austenitic Stainless Steel 316L SORF Flanges | 316L Stainless Steel BLRF Flanges Stockiest |
| SS 316L Ring Type Joint Flanges Exporter | ASTM A182M 316L SS DIN Flanges Dealer |
