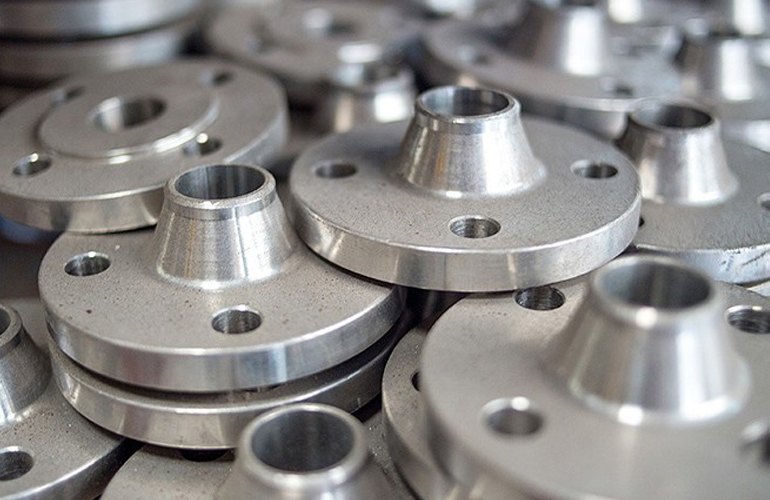

Premium Techanical Support Trading Est are Manufacturer, Exporter and Supplier of Stainless Steel Flanges. Premium Techanical Support Trading Est are Manufacturing Stainless Steel 304H Flanges of high quality raw materials. SS 304H flanges are precise in size, resistant to corrosion & non-reactive to chemicals including acids. Stainless Steel 304H Flanges are basically used for changing the route of liquid material.
Stainless steel 304 flanges are enriched with amazing ductile, welding, and annealing properties. These flanges are generally made of 8% nickel, 18% chromium, and austenitic steel. SS 304 flanges are corrosion and oxidation resistant, which makes them ideal for big industrial applications. 304 flanges are also resistant to crevice corrosion, heat, and pitting as it has low carbon content. This grade can tolerate heat up to 870°C, which allows it to work in heat application units.
Premium Techanical Support Trading Est is a certified manufacturing company that manufactures and supplies steel-grade products. We supply all types of flanges, pipes, weld fittings, fasteners, tubes, bars, Etc. We always make sure that all the products are well tested and certified.
Stainless Steel 304H Flanges Specifications
| Standards | : | ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Designation | : | A 182 / A 240, SA 182 / SA 240 |
| Grade | : | Stainless steel 304H Flanges |
| Class | : | PN6, PN10, PN16, PN25, PN40, PN64. 150#, 300#, 600#, 900#, 1500#, 2500#. |
| Dimension | : | B16.5, BS4504, EN-1092 |
Stainless Steel 304H Flanges Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | EN | BS | GOST | JIS | AFNOR |
| SS 304H | S30409 | 1.4301 | - | - | - | - | - |
Stainless Steel 304H Flanges Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | - | 8 – 10.5 | - |
Stainless Steel 304H Flanges Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 304H Flanges Available Types
| Stainless Steel 304H Flanges | Steel 304H Flanges |
| Stainless Steel 304H Pipe Flanges | SS 304H Flanges |
| Stainless Steel 304H Welding Neck Flange | F304H Stainless Steel Forged Flanges |
| SS 304H Slip on Flange | Stainless Steel ASTM A182M 304H Plate Flanges |
| Stainless Steel 304H Blind Flange Distributor | ASME B16.5 SS 304H High Hub Blind Flange |
| SS 304H Socket Weld Flanges Manufacturer | Steel 304H Lap Joint Flanges |
| 304H Stainless Steel Threaded Flanges | Stainless Steel DIN 1.4301 RTJ Flange |
| Stainless Steel F304H ASME Flanges | 304H Stainless Steel ANSI Flanges |
| ASTM A182 Stainless Steel Reducing Flanges | 304H Stainless Steel Long Weld Neck Flanges |
| Stainless Steel UNS S30409 Orifice Flange | ANSI B16.5 SS 304H WNRF Flange Supplier |
| ASME SA182 SS 304H Spectacle Blind Flanges Stockist | 304H Stainless Steel Screwed Flanges |
| Wrought Austenitic Stainless Steel 304H SORF Flanges | 304H Stainless Steel BLRF Flanges Stockiest |
| SS 304H Ring Type Joint Flanges Exporter | ASTM A182M 304H SS DIN Flanges Dealer |
