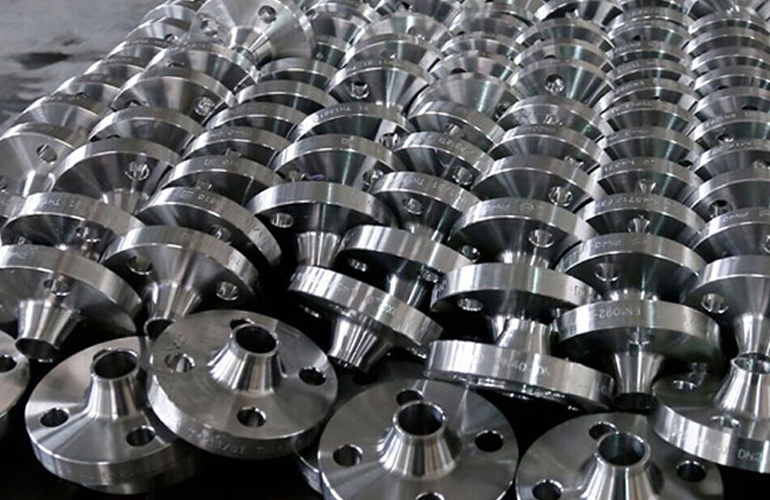

Premium Techanical Support Trading Est are Manufacturer, Exporter and Supplier of Stainless Steel Flanges. Premium Techanical Support Trading Est are Manufacturing Stainless Steel 317L Flanges of high quality raw materials. SS 317L flanges are precise in size, resistant to corrosion & non-reactive to chemicals including acids. Stainless Steel 317L Flanges are basically used for changing the route of liquid material.
Stainless Steel 317L Flanges Specifications
| Standards | : | ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Designation | : | A 182 / A 240, SA 182 / SA 240 |
| Grade | : | Stainless steel 317L Flanges |
| Class | : | PN6, PN10, PN16, PN25, PN40, PN64. 150#, 300#, 600#, 900#, 1500#, 2500#. |
| Dimension | : | B16.5, BS4504, EN-1092, |
Stainless Steel 317L Flanges Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| SS 317L | S31703 | 1.4438 |
Stainless Steel 317L Flanges Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.89 min |
Stainless Steel 317L Flanges Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 317L Flanges Available Types
| Stainless Steel 317L Flanges | Steel 317L Flanges |
| Stainless Steel 317L Pipe Flanges | SS 317L Flanges |
| Stainless Steel 317L Welding Neck Flange | F317L Stainless Steel Forged Flanges |
| SS 317L Slip on Flange | Stainless Steel ASTM A182M 317L Plate Flanges |
| Stainless Steel 317L Blind Flange Distributor | ASME B16.5 SS 317L High Hub Blind Flange |
| SS 317L Socket Weld Flanges Manufacturer | Steel 317L Lap Joint Flanges |
| 317L Stainless Steel Threaded Flanges | Stainless Steel DIN 1.4438 RTJ Flange |
| Stainless Steel F317L ASME Flanges | 317L Stainless Steel ANSI Flanges |
| ASTM A182 Stainless Steel Reducing Flanges | 317L Stainless Steel Long Weld Neck Flanges |
| Stainless Steel UNS S31703 Orifice Flange | ANSI B16.5 SS 317L WNRF Flange Supplier |
| ASME SA182 SS 317L Spectacle Blind Flanges Stockist | 317L Stainless Steel Screwed Flanges |
| Wrought Austenitic Stainless Steel 317L SORF Flanges | 317L Stainless Steel BLRF Flanges Stockiest |
| SS 317L Ring Type Joint Flanges Exporter | ASTM A182M 317L SS DIN Flanges Dealer |
