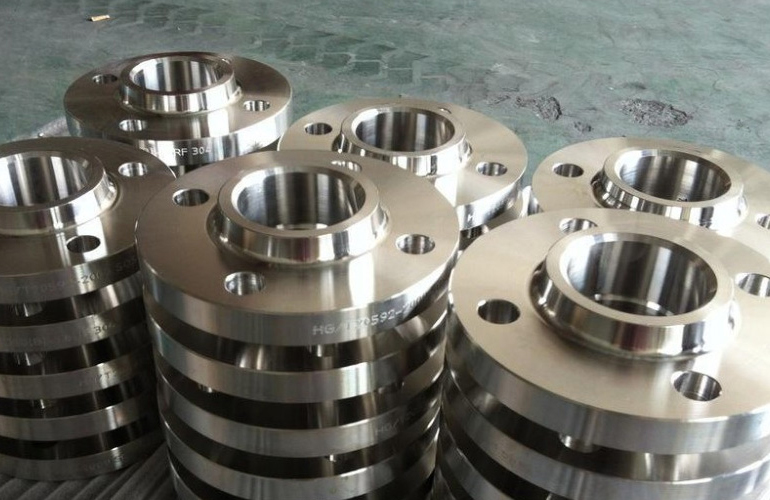

Premium Techanical Support Trading Est are Manufacturer, Exporter and Supplier of Stainless Steel Flanges. Premium Techanical Support Trading Est are Manufacturing Stainless Steel 304L Flanges of high quality raw materials. SS 304L flanges are precise in size, resistant to corrosion & non-reactive to chemicals including acids. Stainless Steel 304L Flanges are basically used for changing the route of liquid material.
Stainless Steel 304L Flanges Specifications
| Standards | : | ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Designation | : | A 182 / A 240, SA 182 / SA 240 |
| Grade | : | Stainless steel 304L Flanges |
| Class | : | PN6, PN10, PN16, PN25, PN40, PN64. 150#, 300#, 600#, 900#, 1500#, 2500#. |
| Dimension | : | B16.5, BS4504, EN-1092, |
Stainless Steel 304L Flanges Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | EN | BS | GOST | JIS | AFNOR |
| SS 304L | S30403 | 1.4306 / 1.4307 | X2CrNi18-9 / X2CrNi19-11 | 304S11 | 03Х18Н11 | SUS 304L | Z3CN18‐10 |
Stainless Steel 304L Flanges Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 13 |
Stainless Steel 304L Flanges Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 304L Flanges Available Types
| Stainless Steel 304L Flanges | Steel 304L Flanges |
| Stainless Steel 304L Pipe Flanges | SS 304L Flanges |
| Stainless Steel 304L Welding Neck Flange | F304L Stainless Steel Forged Flanges |
| SS 304L Slip on Flange | Stainless Steel ASTM A182M 304L Plate Flanges |
| Stainless Steel 304L Blind Flange Distributor | ASME B16.5 SS 304L High Hub Blind Flange |
| SS 304L Socket Weld Flanges Manufacturer | Steel 304L Lap Joint Flanges |
| 304L Stainless Steel Threaded Flanges | Stainless Steel DIN 1.4306 / 1.4307 RTJ Flange |
| Stainless Steel F304L ASME Flanges | 304L Stainless Steel ANSI Flanges |
| ASTM A182 Stainless Steel Reducing Flanges | 304L Stainless Steel Long Weld Neck Flanges |
| Stainless Steel UNS S30403 Orifice Flange | ANSI B16.5 SS 304L WNRF Flange Supplier |
| ASME SA182 SS 304L Spectacle Blind Flanges Stockist | 304L Stainless Steel Screwed Flanges |
| Wrought Austenitic Stainless Steel 304L SORF Flanges | 304L Stainless Steel BLRF Flanges Stockiest |
| SS 304L Ring Type Joint Flanges Exporter | ASTM A182M 304L SS DIN Flanges Dealer |
